Drajver za NEMA 23 step motore do 5.6A - JKD5056S

Product Application

It can be applied in a variety of small scale automation equipment and instruments, such as labeling machine, cutting machine, packing machine, drawing machine, engraving machine, CNC machine and so on. It always performs well when it is used in equipment which requires for low-vibration, low-noise, high-precision and high-velocity.

Main Features

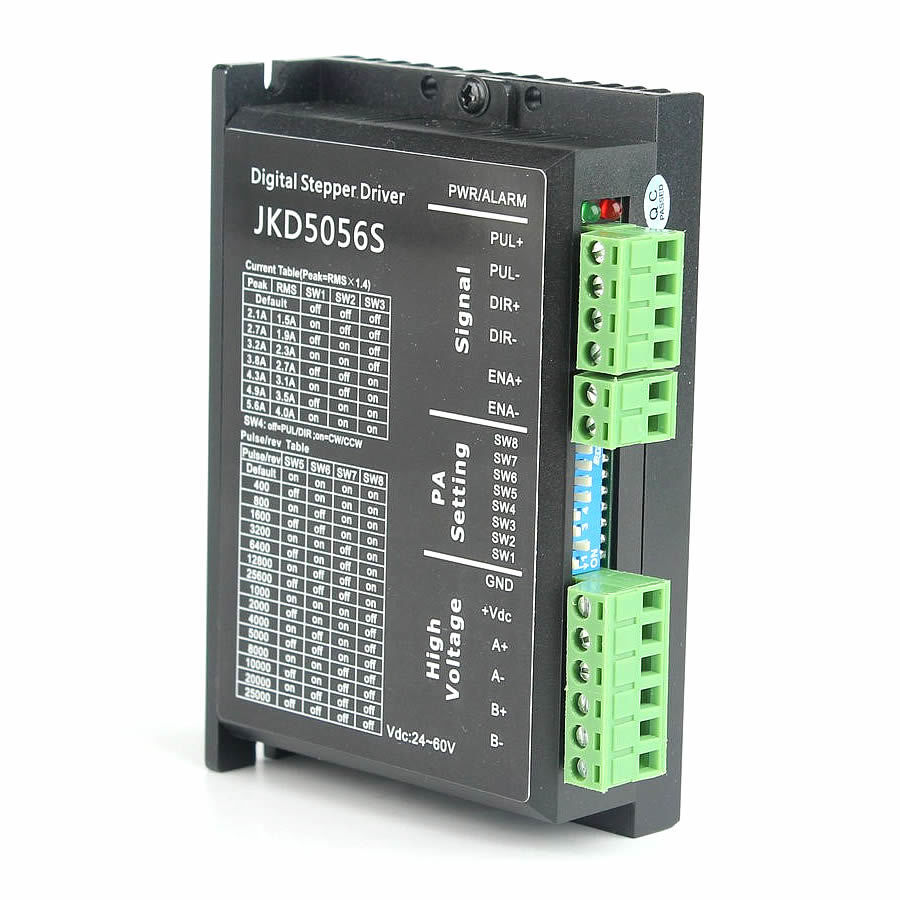

The JKD5056S is a new generation high-performance digital stepper driver based on DSP with advanced control algorithm. The motors driven by JKD5056 can run with much smaller noise and much less vibration than other drivers in the market. The JKD5056 possess the feature of lower noise, lower vibration, and lower heating. The JKD5056S's voltage is DC 24V-50V. It is suitable for all the 2-phase hybrid stepper motor whose current is less than 5.6A.There are 16 kinds of microstep of JKD5056S. The maximum step number of JKD5056S is 51200 steps/rev (microstep is 1/256 ). Its current range is 2.1A-5.6A, and its output current has 8 stalls. JKD5056S has automatic semi-flow, over-voltage, under voltage and over-current protection function.
